configuration

Tracking Navi consists of the following components:

  1. Device (Android smartphone)
  2. BLE beacon
  3. Tracking Navi management portal

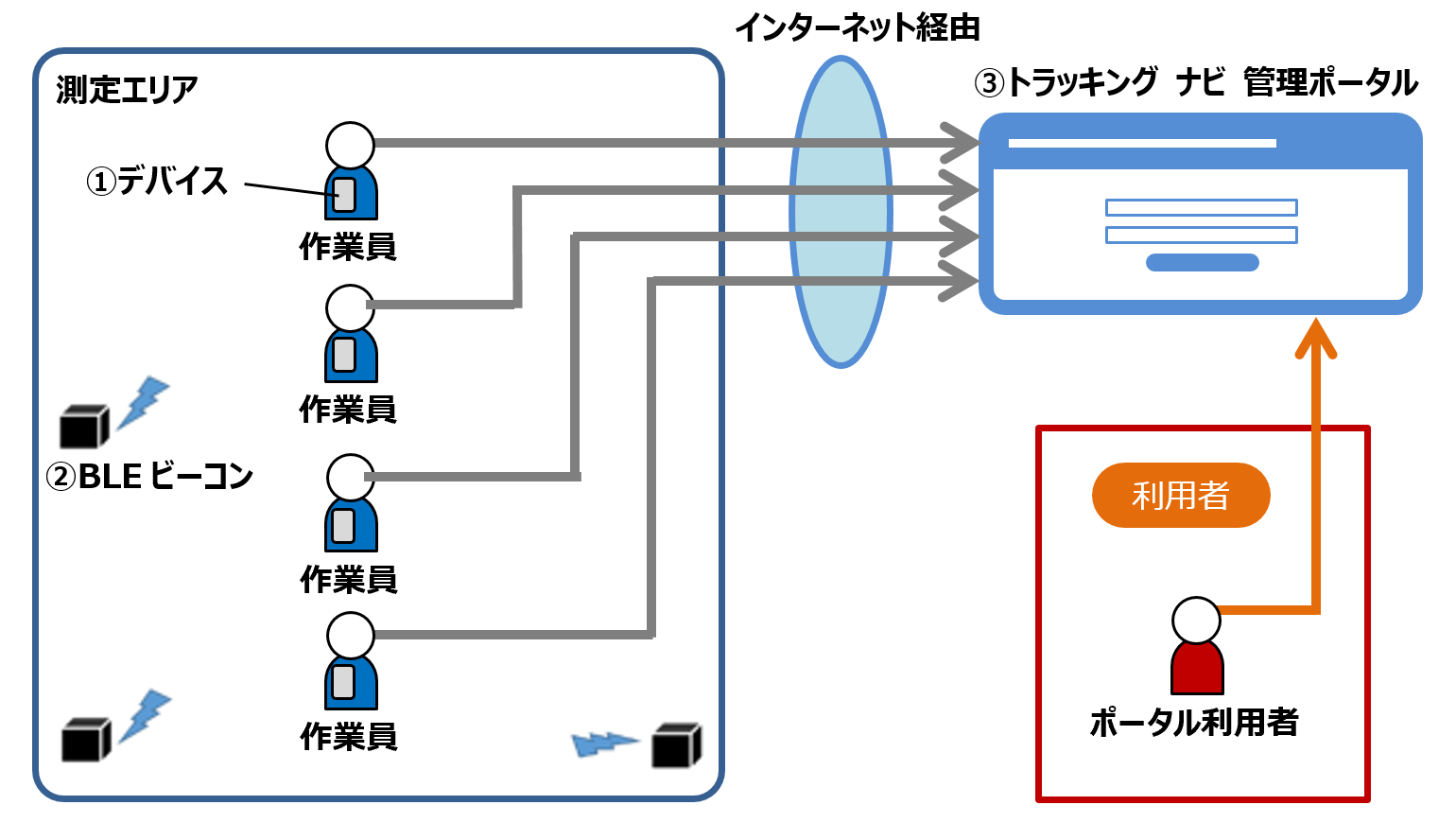

System Image

Login screen

Data obtained from multiple workers wearing,

  1. Devices
  2. Positioning error correction data from BLE beacons

is collected via the internet to

  1. Tracking Navi management portal

In the Tracking Navi management portal, collected data and files can be received by portal users.
